Major Safety Standards & Safety Marks

The International Electrotechnical Commission (IEC) and the associated International Organization for Standardization (ISO) are the principal agencies responsible for electrical safety standards. Agencies such as Underwriters Laboratories (UL) and Canadian Standards Association (CSA) provide certification in North America. At the same time, similar bodies in Europe are Verband der Elektrotechnik (VDE), Technischer Überwachungs-Verein (TUV), and British Standards Institution (BSI). A product meeting an IEC standard such as IEC 60950 or the newer 62368-1 standard may be identified with the standard’s number prefixed instead by UL, CSA, or EN (European Norm) to indicate the country where it is certified, e.g., UL 60950 or EN 62368-1. Standards like these with the same numbers but different prefixes are sometimes referred to as “harmonized standards”. But while the IEC continues to pursue harmonization, regional differences remain, and consequently, products intended for multiple markets will need to show all of the required certifications.

Power Cord Safety Marks

Specific information of Power Cord Safety Marks

Safety Marks
Image Plug Type Approvals Description
Americas Americas UL (Underwriters Laboratories) ul NEMA 1-15
NEMA 5-15 or L5-15
NEMA 5-20 or L5-20
NEMA 5-30 or L5-30
NEMA 6-15 or L6-15
NEMA 6-20 or L6-20
NEMA 6-30 or L6-30
NEMA 5-50
NEMA 6-50
NEMA 14-30 or L14-30
NEMA 14-50
NEMA 15-30 or L15-30
NEMA 15-50
NEMA L14-20
NEMA L15-20
NEMA L21-20
NEMA L22-20
NEMA L23-20
NEMA L18-30
NEMA L19-30
NEMA L20-30
NEMA L21-30
NEMA L22-30
NEMA L23-30
CUL
Americas Canada CSA (Canada Standards Association) csa CSA (Canada Standards Association)
Australia Australia: SAA Mark SAA

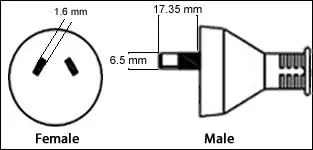

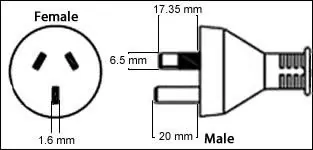

AS3112 2.5A

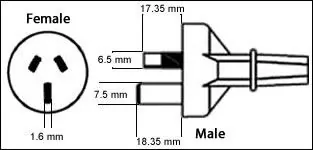

AS3112 10AAS3112 15A

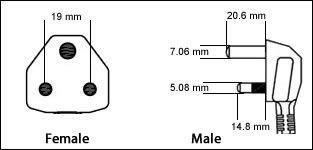

India India: STQC BIS IS6A3 6A

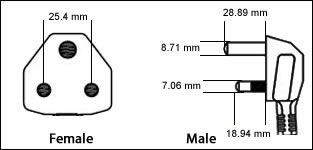

IS16A3 16A
Russia Russia: GOST EAC GOST 7396 2.5A
GOST 7396 16A
Brazil Brazil: Inmetro NBR NBR6147 2.5A
NBR14136 10A
NBR14136 16A

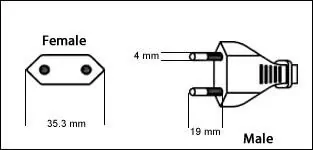

Israel Israel:  SII SI CEE7/16 2.5A
CEE7/7 16A
South Africa South Africa SABS SABS SANS 164-3 6A
SANS 164-1 16A
South Africa Saudi Arabia SASO SASO SABS 164-1, BS546
China China: CCC CCC GB1002 2.5A

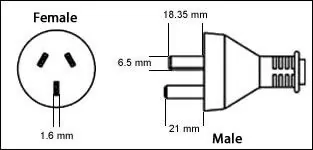

GB2099 10A

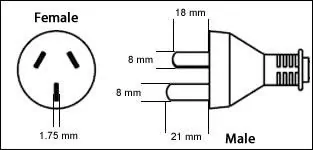

GB2099 16A

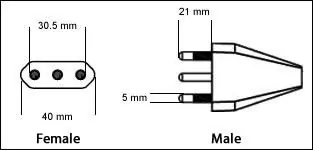

Italy Italy: IMQ IMQ CEI23-16 10A
CEI23-16 16A

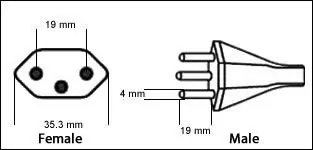

Switzerland Switzerland: ESTI - Federal Inspectorate For Heavy Current Installations, (formerly SEV) SEV SEV1011 10A

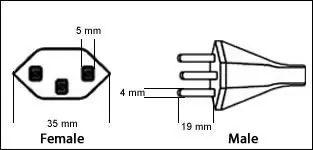

SEV1011 16A

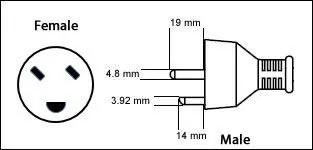

Denmark Denmark: DEMKO DEMKO AFSNIT 10A
Japan Japan: JET PSE JIS8303 1-15 7A
JIS8303 5-15 15A
JIS8303 L5-20
JIS8303 L5-30
JIS8303 L6-20
JIS8303 L6-30
Europe Europe: CE CE CEE7/16 2.5A
CEE7/7 16A
Germany Germany: VDE VDE CEE7/4 16A

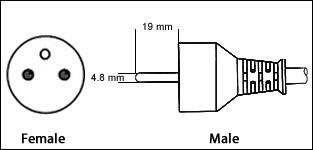

France France: LCIE FN CEE7/6 16A
Germany Norway NEMKO NEMKO Europe CEE7/7,CEE7/17,CEE1/7 Schuko
Germany 1 Finland FIMKO FIMKO Europe CEE7/7,CEE7/17,CEE1/7 Schuko
Israel Belgium CEBEC CEBEC Europe CEE7/7,CEE7/17,CEE1/7 Schuko
UK United Kingdo ASTA BS BS1363 13A
Argentina Argentina: IRAM S Mark IRAM2063 2.5A
IRAM2073 10A
IRAM2073 16A
Japan Taiwan BSMI bsmi CNS10917 1-15 7A
CNS10917 5-15 7A
UK Singapore PSB SPRING psb BS1363(A) UK

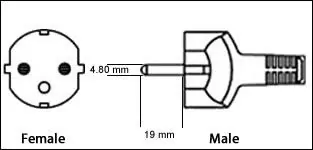

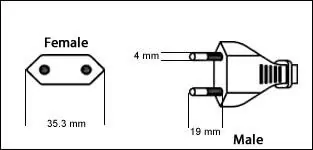

Korea Korea: KTL KC KSC8305 2.5A
KSC8305 10A
KSC8305 16A

United States of America UL Safety Marks

Organization: UL Listed & UL Recognized

UL Listed & UL Recognized

The UL Mark indicates that either Underwriters Laboratories or an equivalent nationally recognized testing laboratory (NRTL) has tested and determined that a product meets UL specified product safety requirements. This certification allows a manufacturer to show that their product is “UL Listed” using the familiar UL logo. In addition to certifying products to their safety specifications, UL also offers an assessment process to provide certification to many of the regional safety mark schemes worldwide, including those summarized below.

Note also that Underwriters Laboratories of Canada (ULC) is an independent product safety testing, certification, and inspection organization accredited by the Standards Council of Canada. It uses the above UL logos accompanied by the letter “C.”

NEMA Power Cords

RoHS 45VDE certificate logo

new products 1 结果

Product Name

16 AWG NEMA 5-15P to NEMA 5-15R Power extension Cord

Product Name

new products 4 结果

Product Name

Electrical Plug Standards: Type A

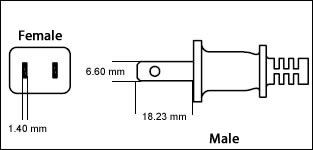

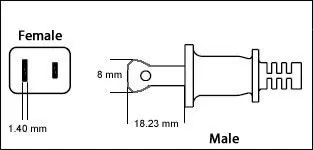

USA Polarized NEMA 1-15P 2 Pin 10 Amp

USA Polarized NEMA 1-15P 2 Pin - 10 Amp

The USA Polarized NEMA 1-15 standard 2 Pin 10 amp non-grounded is the standard 2 wire wall receptacle found in the United States. Polarized has one blade flanged wider. Power cords manufactured in compliance with NEMA and IEC standards. UL and CSA approvals and certifications are available on the product specification page.

Electrical Plug Standards: Type A

USA Non-Polarized NEMA 1-15 2 Pin 10 Amp

USA Non-Polarized NEMA 1-15 2 Pin - 10 Amp

The USA Non-Polarized NEMA 1-15 standard 2 pins 10 amp non-grounded is the standard 2 wire wall receptacle found in the United States. Power cords manufactured in compliance with NEMA and IEC standards. UL and CSA approvals and certifications are available on the product specification page.

Electrical Plug Standards: Type B

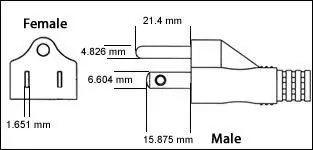

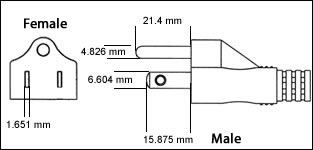

USA Grounded NEMA 5-15 3 Pin 15 Amp

USA Grounded NEMA 5-15 3 Pin - 15 Amp

The USA Grounded NEMA 5-15 standard 3 pin 15 amp is the standard 3 wire wall receptacle found in the United States. Power cords manufactured in compliance with NEMA and IEC standards. UL and CSA approvals and certifications are available on the product specification page.

Regional Safety Marks

In fact, we can also use the world map to more intuitively identify the power cord safety signs of each country, such as the Americas, Europe & Asia.

The maps in the following section highlight some of the more notable safety marking schemes but are not all-inclusive. In addition, in Europe, there are other marks applicable in the Nordic countries and other central and eastern European countries such as Denmark, Switzerland, Hungary, Ukraine, and Belarus. Countries including Hong Kong and India operate their safety marks in Asia.

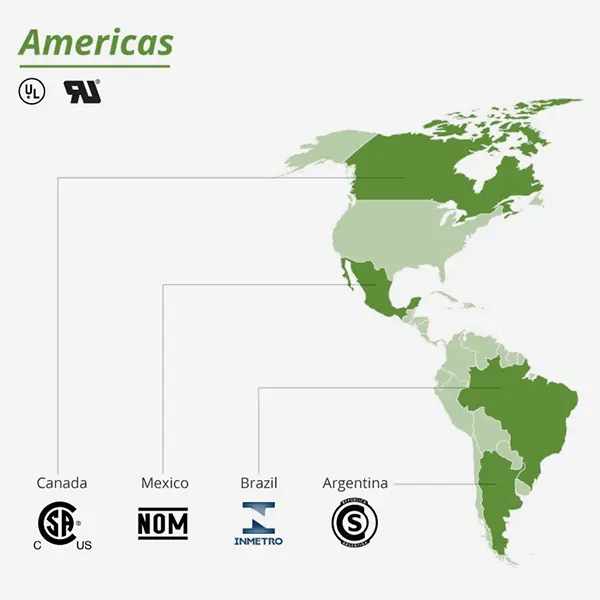

Americas Map and Safety Marks
CSA Organization & UL Canada Listed

CSA Safety Marks – Canada

Organization: CSA & cUL Listed

The Canadian Standards Association operates the CSA marking scheme alongside UL certification to identify products acceptable in either Canada (C suffix letter) and the USA (US suffix).

cUL Listed Power Cords

Canada Non-Polarized NEMA 1-15 2 Pin - 10 Amp

The Canada Non-Polarized NEMA 1-15 standard 2 pin 10 amp non-grounded is the standard 2 wire wall receptacle found in the United States. Power cords manufactured in compliance with NEMA and IEC standards. cUL and CSA approvals and certifications are available on the product specification page.

Power Plug Standards: Type A

Canada Non-Polarized NEMA 1-15 2 Pin 10 Amp

Canada Grounded NEMA 5-15 3 Pin - 15 Amp

Canada Grounded NEMA 5-15 standard 3 pin 15 amp is the standard 3 wire wall receptacle found in the United States. Power cords manufactured in compliance with NEMA and IEC standards. cUL and CSA approvals and certifications are available on the product specification page.

Power Plug Standards: Type B

Canada Grounded NEMA 5-15 3 Pin 15 Amp
nom ance

NOM Safety Marks – Mexico

Organization: NOM-ANCE

The NOM Mark identifies compliance with Mexico’s “Normas Oficiales Mexicanas” (NOM) safety standards for household electrical appliances, IT, AV, and similar equipment. ANCE is an independent body authorized to grant NOM approval in electric and gas products.

NEMA 5-15 Power Cords

Mexico Non-Polarized NEMA 1-15 2 Pin - 10 Amp

The Mexico Non-Polarized NEMA 1-15 standard 2 pin 10 amp non-grounded is the standard 2 wire wall receptacle found in the United States. Cords are manufactured in compliance with NEMA and IEC standards.NOM-ANCE approvals and certifications are available on the product specification page.

Power Plug Standards: Type A

Mexico Non-Polarized NEMA 1-15 2 Pin 10 Amp

Mexico Grounded NEMA 5-15 3 Pin - 15 Amp

Mexico Grounded NEMA 5-15 standard 3 pin 15 amp is the standard 3 wire wall receptacle found in the United States. Cords are manufactured in compliance with NEMA and IEC standards. NOM-ANCE approvals and certifications are available on the product specification page.

Power Plug Standards: Type B

Mexico Grounded NEMA 5-15 3 Pin 15 Amp
INMETRO & CSA

INMETRO Safety Marks – Brazil

Organization: INMETRO & CSA

Certification of certain product groups, such as medical electrical equipment, ballasts, and equipment used in hazardous locations, is mandatory in Brazil, with accreditation indicated by the INMETRO Mark. The INMETRO Mark may also be used voluntarily to indicate safety standards compliance for products that are not mandated, e.g., IT, audio/visual equipment, and home appliances.

Brazil Power Cords

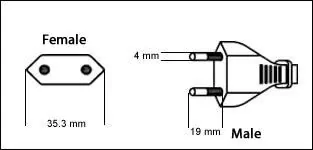

Brazil NBR 6147 2 Prong - 10 Amp

The Brazil NBR 6147 standard 2 prong 10 amp non-grounded standard is new. Power cords manufactured in compliance with Brazilian NBR 6147 standards. INMETRO and CSA agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type C

Brazil NBR 6147 2 Prong 10 Amp

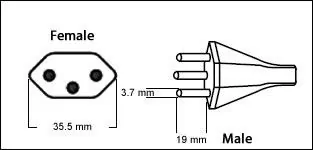

Brazil NBR 14136 3 Prong - 10 Amp

The Brazil NBR 14136 standard 3 prong 10 amp standard is new. Power cords manufactured in compliance with Brazilian NBR 14136 standards. INMETRO and CSA agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type N

Brazil NBR 14136 3 Prong 10 Amp

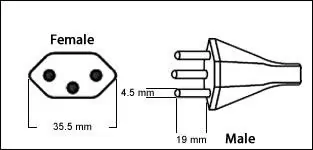

Brazil NBR 14136 3 Prong - 16 Amp

The Brazil NBR 14136 standard 3 prong 16 amp standard is new. Power cords manufactured in compliance with Brazilian NBR 14136 standards. INMETRO and CSA agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type N

Brazil NBR 14136 3 Prong 16 Amp
IRAM Organization & UL Argentina Listed

IRAM S Safety Mark – Argentina

Organization: IRAM S Mark or UL Argentina

Product certification to IEC-based standards is mandatory in Argentina under the auspices of its standards body IRAM with conformance indicated by the S Mark.

Argentina Power Cords

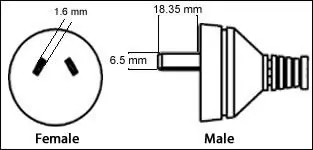

Argentina IRAM 2063 - 2.5 Amp

The Argentina IRAM 2063 standard is physically the same as Australia AS 3112 but the line blades are not insulated. Electrical cords are manufactured in compliance with IRAM standards. UL Argentina agency approvals and certifications are available on the product specification page.

Electrical Plug Standards: Type I

Argentina IRAM 2063 2.5 Amp

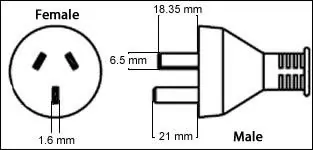

Argentina IRAM 2073 - 10 Amp

The Argentina IRAM 2073 standard 10 amp is physically the same as the China GB2099. Electrical cords are manufactured in compliance with IRAM standards. UL Argentina agency approvals and certifications are available on the product specification page.

Electrical Plug Standards: Type I

Argentina IRAM 2073 10 Amp

CE Safety Marks

What is a CE marking? A CE marking is a European marking of conformity that indicates that a product complies with the essential requirements of the applicable European laws or directives for safety, health, environment, and consumer protection. Generally, this conformity to the applicable directives is done through self-declaration. The CE marking is required on products in the European Economic Area (EEA) countries to facilitate trade between the member countries. The manufacturer or authorized representative established in the EEA is responsible for affixing the CE marking to his product. The CE marking provides a means for a manufacturer to demonstrate that his product complies with a standard set of laws required by all of the countries in the EEA to allow free movement of trade within the EEA countries.

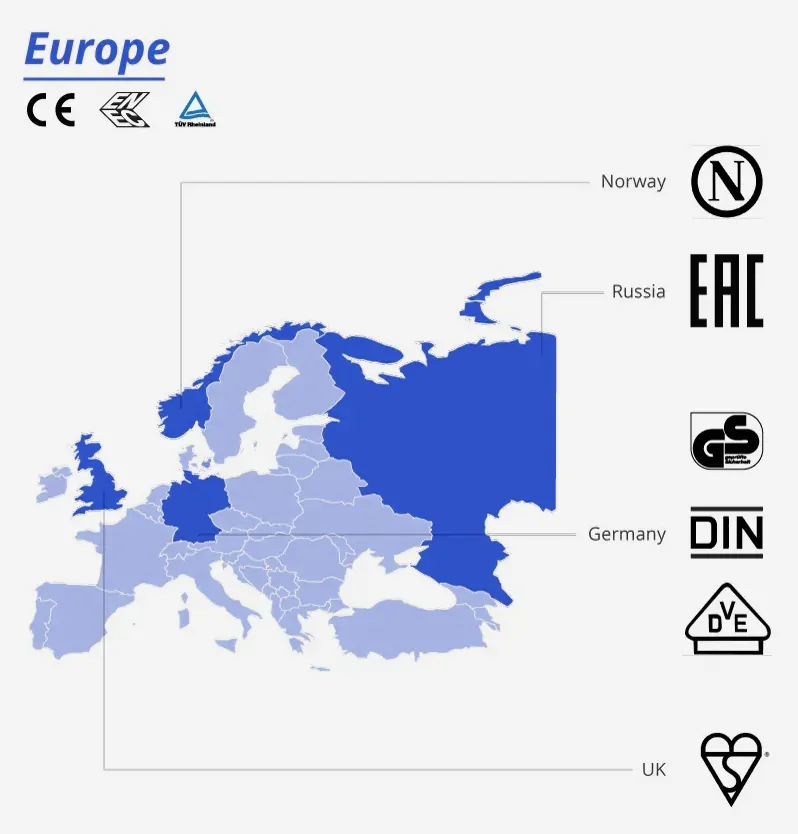

Europe Map and Safety Marks

Unlike the UL Safety Mark, the CE Safety Mark:

  • It is not a safety certification mark.
  • It is generally based on self-declaration rather than third party certification.
  • Does not demonstrate compliance to North American safety standards or installation codes

A product that bears a CE marking may also reach a certification mark such as UL’s listing mark. However, the CE marking and the UL mark have no association. The UL Mark indicates compliance with the applicable safety requirements in North America and is evidence of UL certification, which is accepted by Model North American Installation Codes such as the National Electrical Code and the Canadian Electrical Code.

The CE marking on products is not a certification mark. AHJs should continue to look for the UL mark on products to determine if a product complies with applicable safety requirements for North America.

[Information courtesy of Underwriters Laboratories]

ENEC Organization

Safety Marks - Europe

Organization: ENEC

The ENEC Safety Marks is simply the mark used to denote compliance with the European Norm (EN) standards for all electrical product sectors, as tested by approved independent testing laboratories worldwide.

Europe Power Cords

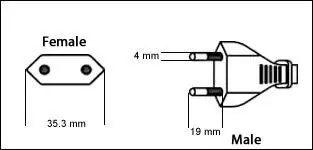

Europe CEE7/16 2 Prong - 2.5 Amp

The Europe CEE7/16 standard 2 prong 2.5 amp is the standard 2 electrical wire plug for non-grounded applications in most areas of continental Europe. Power cables manufactured in compliance with European CEE7/16 standards, and ENEC agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type C

Europe CEE7/16 2 Prong 2.5 Amp

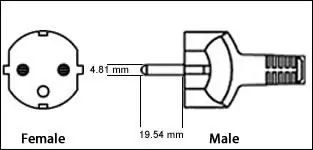

Europe CEE7/7 Schuko 3 Prong - 16 Amp

The Europe CEE7/7 standard 3 prong 16 amp plug has both the side grounding clips of the Germany CEE7/4 receptacle and a female contact to accept the grounding pin of the France CEE7/5 receptacle. Power cables manufactured in compliance with European CEE7/7 standards. ENEC agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type E/F

Europe CEE7/7 Schuko 3 Prong 16 Amp
NEMKO Organization

Nemko Mark - Norway

Organization: NEMKO

Nemko is an organization similar to TUV or UL that offers product safety testing and certification to worldwide standards. Its direct services cover IT/AV, household, and telecoms products but extend to other sectors such as medical equipment and the oil and gas industry. The mark itself signifies that Nemko has tested or certified the product according to national standards in Norway.

Type F Plug Power Cords

Norway Schuko CEE7/4 2 Prong - 16 Amp

The Norway Schuko CEE7/4 standard 2 prong 16 amp has side grounding clips. Power cables manufactured in compliance with European CEE7/4 standards. NEMKO agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type F

Norway Schuko CEE7/4 2 Prong 16 Amp
EAC Organization

EAC Safety Mark – Russia

Organization: EAC

The Eurasian Conformity (EAC) mark has replaced the previous GOST-R and PCT national certification standards and marks. This mark is used to indicate products that meet all of the technical requirements of the Eurasian Customs Union.

Type C Plug Power Cords

Russia GOST 7396 3 Prong - 16 Amp

The Russia GOST 7396 standard 3 prong 16 amp contacts 4.0mm as opposed to the 4.8mm contacts of other European plugs and receptacles. As such, a Russia GOST 7396 receptacle may not accept the larger contacts found on Europe CEE7/4, CEE7/7, and CEE7/16 plugs. Power cables manufactured in compliance with Russian GOST 7396 standards. EAC agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type C

Russia GOST 7396 3 Prong 16 Amp
VDE Organization

GS, DIN, and VDE Safety Marks – Germany/EU

Organization: TUV, VDE

Germany’s TUV standards agency operates the GS Mark (Geprüfte Sicherheit = tested safety) to show conformity with German’s Equipment and Product Safety Act (GPSG = Geräte- und Produktisicherheitgesetz). The GS Mark assures commercial buyers and consumers the product has been tested by an authorized institution such as TUV Rheinland. The DIN Mark is another marking scheme operated by TUV Rheinland certifying component compliance with DIN, EN, IEC, and ISO product safety standards.

The VDE Testing and Certification Institute is another German-based independent testing organization for electrical and electronic products. The VDE Mark indicates conformity with the VDE standards, European or internationally harmonized standards, and confirms compliance with protective requirements of the applicable EC Directive(s).

Type F Plug Power Cords

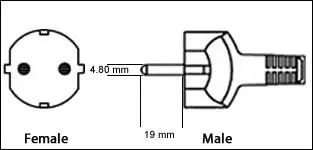

Germany Schuko CEE7/4 2 Prong- 16 Amp

Germany and Spain use the Schuko CEE7/4 standard 2 prong 16 amp, which has side grounding clips. Power cables manufactured in compliance with European CEE7/4 standards. VDE agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type F

Germany Schuko CEE7/4 2 Prong 16 Amp
ASTA Organization

BSI Kitemark - U.K.

Organization: ASTA

The British Standards Institution (BSI) was the world’s first national standards body and continues to be a leading global standards maker. BSI is also the U.K.’s National Standards Body, representing U.K. interests worldwide. The BSI Kitemark is a voluntary certification mark, globally recognized as a symbol of trust, that shows a product or service meets applicable and appropriate British, European, International, and other standards for quality, safety, performance, and trust.

Type G Plug/U.K. Power Cords

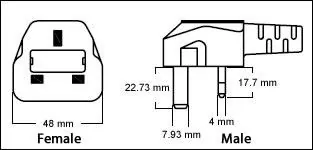

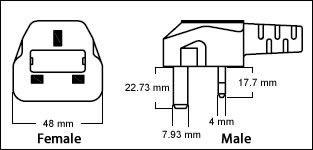

UK BS1363 3 Pin - 13 Amp

The UK BS1363 standard 3 pin 13 amp typically has a 13 amp fused plug and is used throughout the United Kingdom. The BS1363 replaced the old British BS 546 standard, which is no longer used in the U.K. but is still widely used in India and South Africa. Power cables manufactured in compliance with UK BS 1363 standards. ASTA agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type G

British BS1363 3 Pin 13 Amp

Safety Marking Schemes

Understanding the complexities and subtle differences between various standards and marking schemes can be daunting. This application note aims to identify the major standards that relate to power supply cord safety, the agencies that administer them and/or provide certification, and the marking schemes that can be used to show compliance.

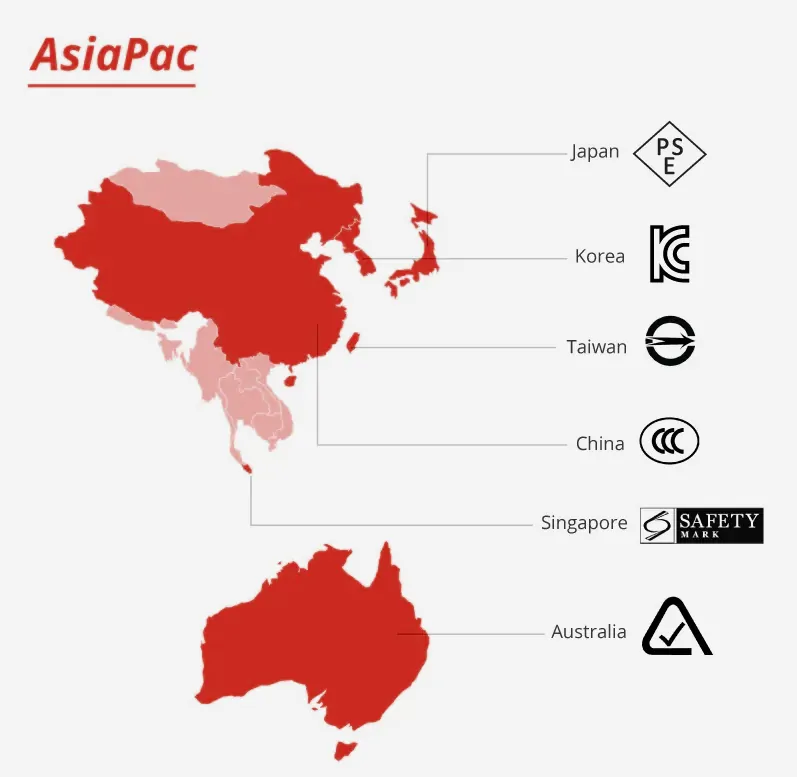

AsiaPac Map and Marks
JET Organization

DENAN PSE Safety Marks – Japan

Organization: JET

The PSE Mark is used to comply with Japan’s Electrical Appliance and Material Safety Law (DENAN) as applied to various classes of products and equipment.

Japan Power Cords

Japan JIS C 8303 Class I 3 Prong - 15 Amp

The Japan JIS C 8303 class I standard 3 prong 15 amp grounded appears to be physically identical to the NEMA 5-15 found in North America. In many cases, a North American plug will mate with Japan receptacles without an adapter. However, the Japan standard holds tighter dimensional measurements than North America, which means that North American plugs will not quite fit into Japan receptacles in some cases. Power cords manufactured in compliance with Japanese JIS C 8303 standards and PSE agency approvals and certifications are available on the product specification page.

Power Plug Standards: Type B

Japan JIS C 8303 Class Class I 3 Prong 15 Amp

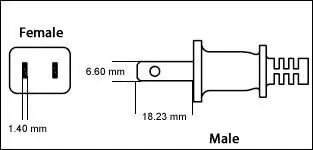

Japan JIS C 8303 Class II 2 Prong - 15 Amp

The Japan JIS C 8303 class II standard 2 prong 15 amp non-grounded appears to be physically identical to the NEMA 1-15 found in North America. In many cases, a North American plug will mate with Japan receptacles without an adapter. However, the Japan standard holds to tighter dimensional standards than North America, which means that North American plugs will not quite fit into Japan receptacles in some cases. Power cords manufactured in compliance with Japanese JIS C 8303 standards. PSE agency approvals and certifications are available on the product specification page.

Electrical Plug Standards: Type A

Japan JIS C 8303 Class II 2 Prong 15 Amp
KTL Organization

KC Mark – Korea

Organization: KTL

Korea’s KC Mark is administered by its Agency for Technology and Standards (KATS) to show compliance for mandated products with the Electrical Appliances and Materials Safety Control Law. It replaced the original EK mark.
